Hardware Overview

Abstract

Zactrack offers three hardware lines—PRO, SMART, and mini—designed to suit different venue sizes and production needs. All systems share the same core technology and software interface. Depending on the performance space, the number of trackers and anchors required varies, ensuring flexible and scalable tracking solutions for any show setup. All zactrack systems comply with relevant worldwide safety standards.

zactrack has 3 different hardware lines to accommodate a variety of shows and venue sizes. They are called PRO, SMART and MINI. All 3 systems use the same technology and the same software interface.

PRO

SMART

MINI

Performance Space

up to Stadium size

30 x 30 m / 100 x 100 ft

15 x 15 m / 50 x 50 ft

Tracking Type

3D

3D

2.5D*

Trackers (Active)

~50

10

5

Trackers (Inactive)

~100

60

60

Trackers (Audio only)

~150

30

15

Anchors

~25

11

6

Fixtures

no Limit

64 / 256 **

32

Backup Option

Yes

Yes

No

*zactrack MINI has 2D tracking with Height offset (via Tablet or Console) allowing Z axis control

**zactrack SMART Main Server does 64 Fixtures, adding a Backup Server expands this to 256 Fixtures

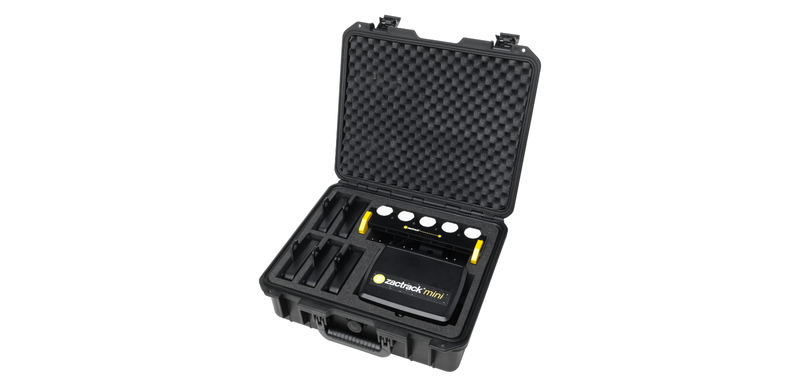

MINI Hardware Kit

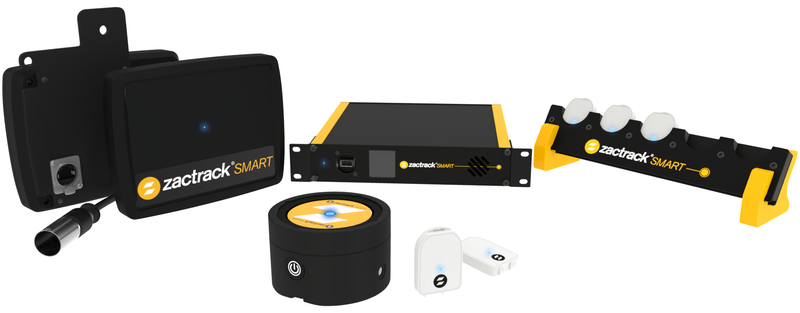

SMART Hardware KIT

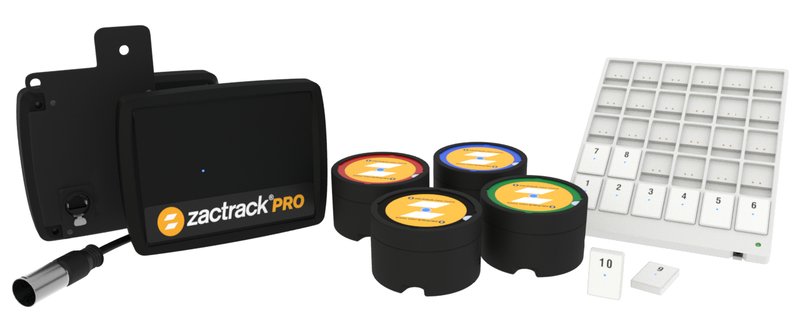

PRO Hardware KIT
