Proxy
The Proxy feature allows you to control virtual tracker positions (proxies) via mouse or touch input.
Click the [P] icon in the toolbar.

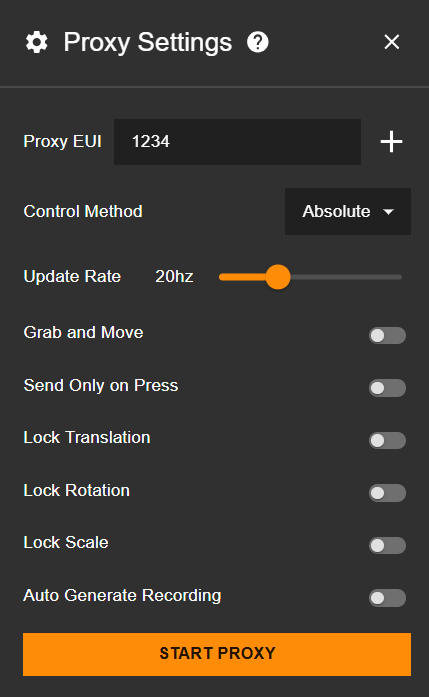

Configure the Proxy to your needs.
Proxy EUI
Define one or multiple EUIs for the position input, which also need to be defined in an Actor in order to use the virtual input.
Control Method
Switch between Absolute and Relative mode. In Absolute mode, the target will follow the exact mouse/touch input position. In relative mode, the target will match the relative movement of the mouse/touch input. Additionally, you can activate the Follow mode, which moves the 2D view according to the input.
Update Rate
Define the update rate for position calculation.
Grab and Move
When active, the user needs to grab the Proxy first in order to move it. If inactive, any click on the 2D view will move the Proxy to the desired position.
Send only on Press
When active, positions will only be generated and sent with the given update rate when the mouse/touch is pressed or moved.
Lock Translation / Rotation / Scale
Lock translation / rotation / scaling of the 2D while operating in Proxy mode.
Auto Generate Recording
Auto-start and stop a new recording with the current Proxy.
After clicking the Start button, the user can operate the Proxy. Fixtures need to be assigned to an Actor containing the defined Proxy EUI.
Tip
Multiple Proxies can be controlled simultaneously by working with multiple browser tabs or PC/mobile devices. Additionally, multiple Proxies can be created and controlled individually within the same Web monitor instance.
